iWeigh® for Trailers

Load Once, Load Legal, and Go!™

QUICK LINKS:

QUICK LINKS:

The Industry's Most Advanced On-Board Scale Platform

iWeigh® is the industry’s most flexible and capable on-board scale platform. iWeigh®for trailers offers outstanding accuracy and performance, while being “scalable” through over-the-air updates to include future features and networking capabilities.  iWeigh® offers an easier install process than our industry-standard LoadMaxx Plus® scales, while remaining flexible for multiple air and mechanical axles in a single unit. Set up, calibration and weight data is available on most devices through the latest, fastest and most secure Bluetooth® standard within 100 feet of the trailer.

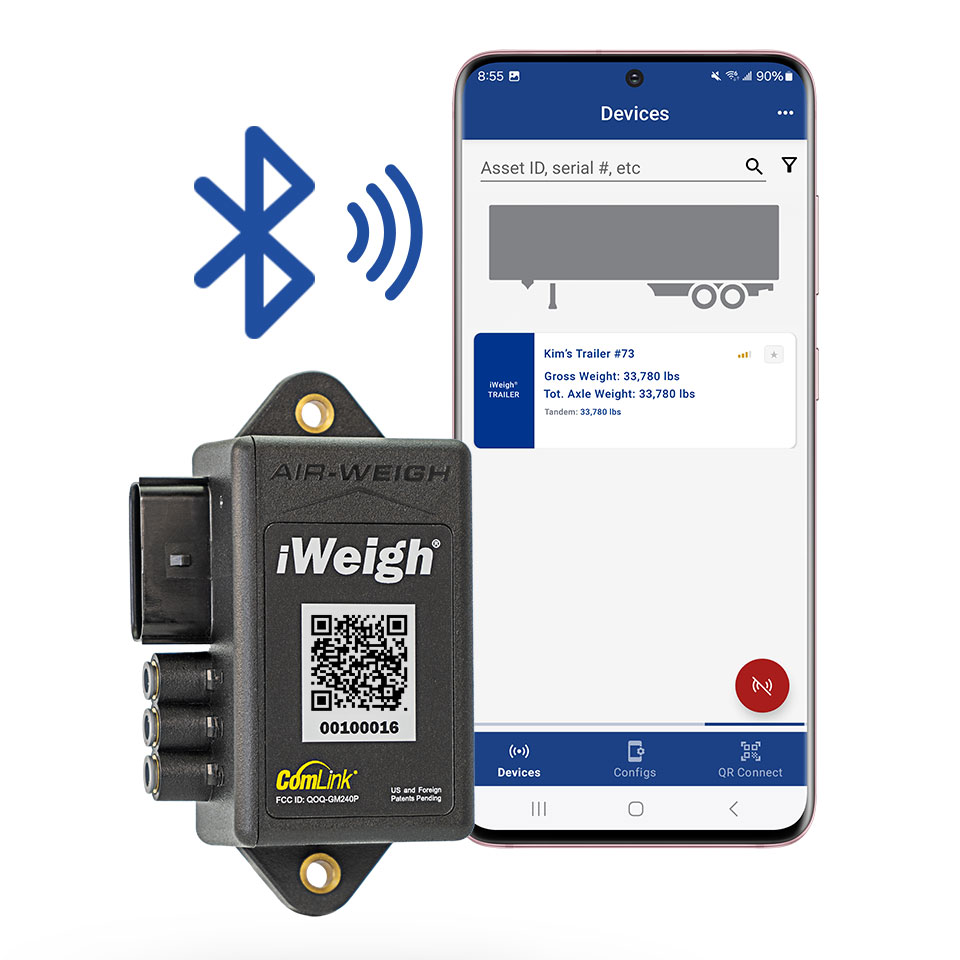

iWeigh App

iWeigh® for Trailer Features

  • Easy-To-Install - Connect power, ground & tee into the air suspension line
  • Internal sensors for durability – iWeigh® reduces the cost of external sensors
  • Weight data is displayed on most smart phones & tablets via Bluetooth®
  • Built to expand – iWeigh® can automatically be updated over-the-air
  • ABS T-Breakout Connection included in kit
  • Better technical assistance – iWeigh® technology can quickly pinpoint any calibration errors or technical issues to keep your scales in top shape
  • Works with both mechanical & air suspensions on a single iWeigh® unit
  • More Secure Data – Weights not visible or accessible outside the trailer
  • Backed by our Limited 3-Year Warranty
  • Designed, Manufactured & Supported in the USA
QuickWeigh

iWeigh® for Trailers Specifications

Display Options
View Weights on Any Smart Device with the Air-Weigh® App

Calibration
Dual-Point Calibration

Air-Weigh® App
Free App Available - Google Play Store and Apple App Store

Operating Temperature
 -40°F (-40°C) To +185°F (+85°C)



Weights
Measure each Trailer Axle Group, Weights in 20 lb. Increments

Accuracy
99+% – Air Suspension
97+%– Mechanical Suspension

Limited Warranty
3-Years, Made & Supported in USA

iWeigh® 553102

Our popular 553102 trailer kit is ideal for air ride suspension and single height control systems.
Simply connect the ABS breakout and air line to the iWeigh® unit, download the app and you’re ready to Load Once, Load Legal, & GoTM

iWeigh what's Inside

iWeigh® offers a full range of options for multiple axles, mechanical suspensions, dual height control valves, and more. Contact one of our fleet specialists at (888)-459-3444 to discuss the solution that’s right for your trailer.

Frequently Asked Questions

What is iWeigh® for Trailers?
iWeigh® is the industry’s most advanced on-board scale platform.   iWeigh® for Trailers is a flexible and very accurate trailer scale, delivering suspension weight data directly to most smart devices.  This allows drivers to see the trailer weight while loading from up to 100 feet away, in real time.  iWeigh® is also “scalable” through over-the-air updates to include future features and networking capabilities.
How does iWeigh® work?
iWeigh® uses sensors to measure air pressure (for air ride suspensions) or a highly-engineered deflection sensor to measure micro-flexing of the axle group (for mechanical suspensions). By calibrating the system with known empty weight at time of the trailer weighed empty and known loaded weight at time of loaded weights, iWeigh® uses the saved calibrated data to accurately calculate and display the current weight of the trailer.

The scale must be calibrated before use. iWeigh® can display weights in pounds or kilograms.

After calibration, simply view weights on the Air-Weigh app or through telematics. The weight data will update in real time.
How accurate is iWeigh®?
iWeigh® boasts industry-leading accuracy. For air-ride suspensions, it is 99% accurate (+/- 300 lbs.), while for mechanical suspensions, it offers 97% accuracy (+/- 900 lbs.).

iWeigh® displays weights in 20lbs. or 20kgs. increments.
What trailer suspension types does iWeigh® for trailer work with?
iWeigh® is designed for both air ride suspensions and most mechanical suspensions.
How many sensors can iWeigh® accommodate?
iWeigh® can accommodate up to 3 air sensors and 4 deflection sensors at once.
Do I need to recalibrating iWeigh® for trailer for accuracy?
Generally, no.  Once you've calibrated iWeigh® with accurate empty and loaded weights, there's no need for recalibration. The system will continue to provide accurate weight readings. If the suspension undergoes significant damage, wear & tear, or changes such as replacing a leveling valve or air bag, a new recalibration is recommended.

For additional details, please visit our website for calibration manuals here: https://www.air-weigh.com/calibration-manuals/

For calibration videos, please visit our website here: https://www.air-weigh.com/calibration-videos
Can I view weight information on my phone?
Yes, iWeigh® offers a free mobile app for Android and IOS devices. This app allows you to conveniently view weight readings directly on your compatible smartphone or tablet.
Is it recommended to house the scale in a protective case or box, or can it be exposed?
iWeigh® is designed to be mounted externally, with a IP67 rated housing tested to stringent SAE standards. A protective case or box is not required.
How is iWeigh® for trailer powered?
iWeigh® is powered by tapping into the trailer power. iWeigh® trailer kits includes an ABS T-breakout for quick and easy access to power and ground.  The ABS T-breakout is compatible with most major trailer wire harness manufacturers.
How far is iWeigh® communication range?
The range for iWeigh® is up to 100 feet in line-of-sight.
How long is the average iWeigh® installation?
This time will vary depending on sensors and suspensions set up. An average iWeigh® installation is around1 – 2 hours for air sensor installation, and calibration is 1-2 hours. Mechanical deflection sensors may take 3 to 4 hours, with 1 to 2 hours for calibration.
How do I assign a unique name to my iWeigh® scale?
Open the Air-Weigh® app. When setting up a new scale during the configuration process, the user will have the option to change the ‘Asset ID’ of the scale. The ‘Asset ID’ is the user-friendly scale name.
Where is my iWeigh® scale manufactured?
Air-Weigh designs, manufactures, and supports our products, including iWeigh®, at our headquarters in Eugene, Oregon, USA. Air-Weigh is certified and adheres to ISO 9001 standards.
How can I purchase an iWeigh® scale?
Air-Weigh offers multiple buying options to integrate our advanced on-board scale systems into your fleet: OEM Installation on new trailers, buying from our extensive dealer network, or buying directly from Air-Weigh to self-install on existing trailers.

Visit https://www.air-weigh.com/#how-to-buy for more information.
Where can I find support for my iWeigh® scale?
Air-Weigh provides comprehensive support. You can reach the team:

By phone (toll-free): (888) 459-3247

By email: [email protected]

Through the website chat

Support Hours are Monday through Friday, 7 AM - 4 PM Pacific Time (excluding holidays).
How long is my limited warranty for my iWeigh® scale?iWeigh® is covered under Air-Weigh’s limited warranty for 3 years from date of purchase. Air-Weigh warrants that our products will be free from defects in material and workmanship under normal use, service, and conditions with proper maintenance over that period.For more information visit our warranty page on our website at: https://www.air-weigh.com/limited-warranty/

Air-Weigh App F.A.Q.

Where do I download the Air-Weigh App?
iWeigh® offers a free mobile app for smart devices. Simply go to the app store on your smart device and search for ‘Air-Weigh’.
What is the cost of the iWeigh® App?
The app is free.
